Grip truck

Crates
Crates

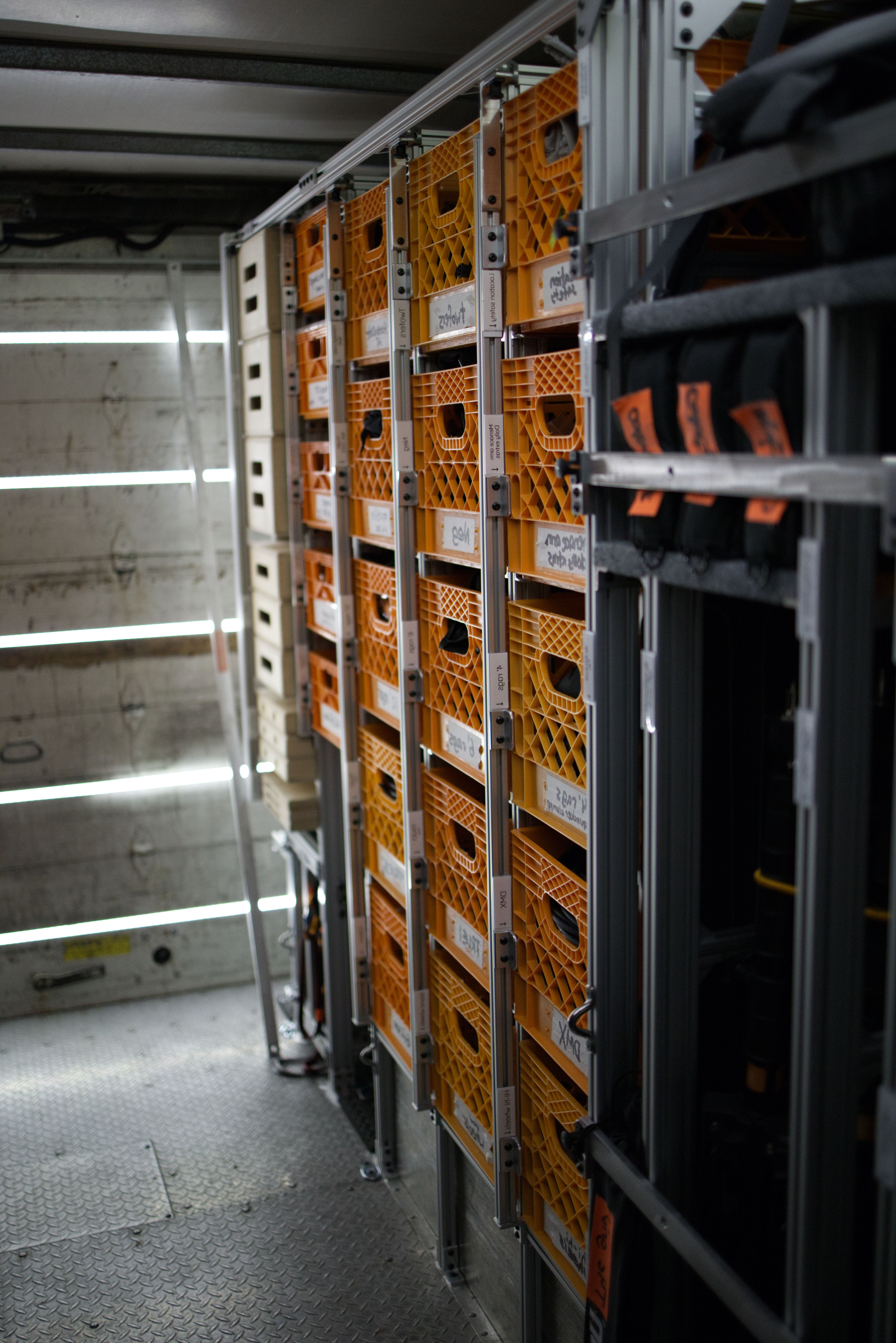

Cases

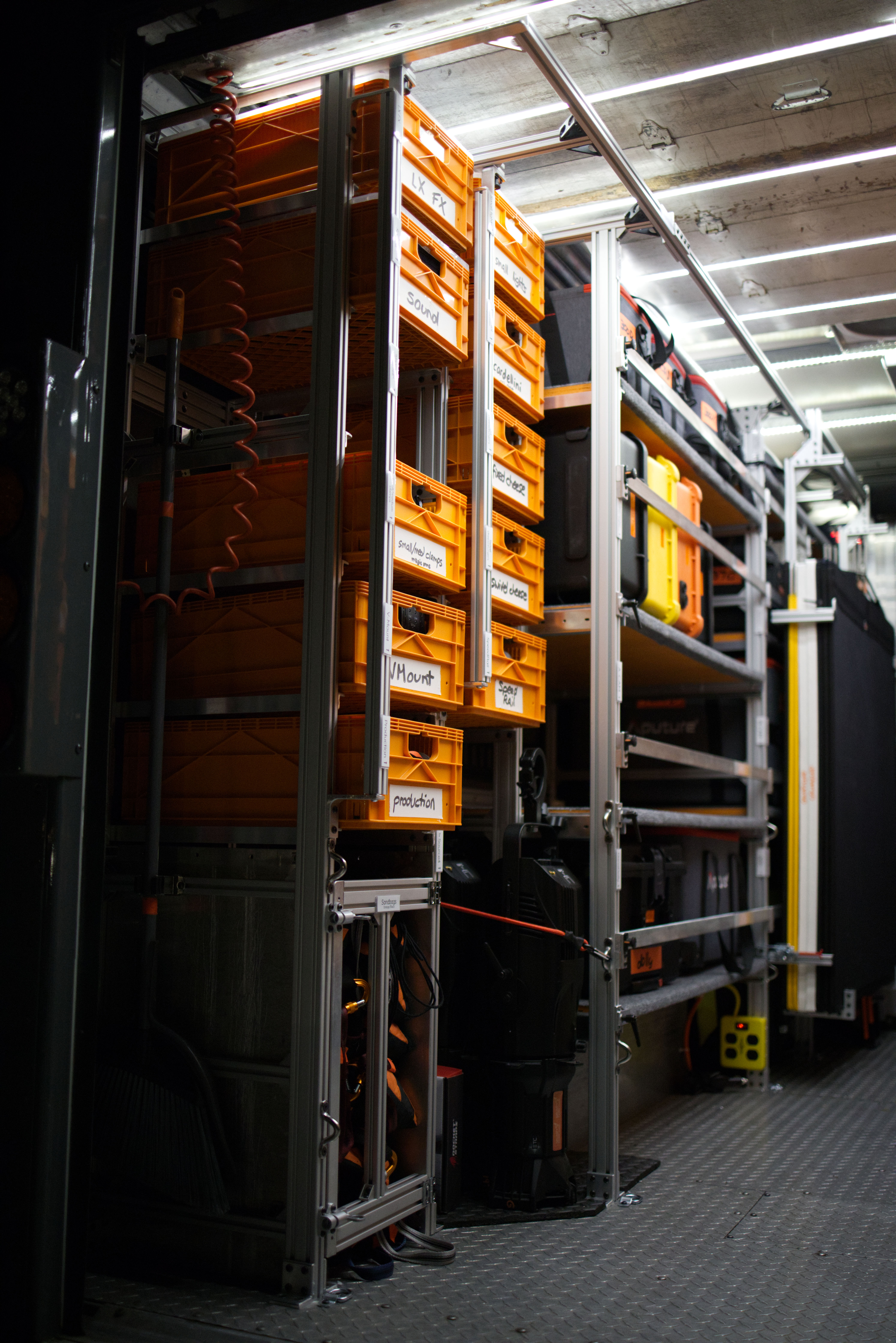

Cases

All gear listed below is on the truck unless marked as .

Truck dimensions: 9'8" tall, 110" wide, 20'6" (liftgate up) / 23'6" (liftgate down) / 24'6" (liftgate down and leveling flap folded out) long. About 8 miles per gallon (diesel).

Cameras

A-CAM

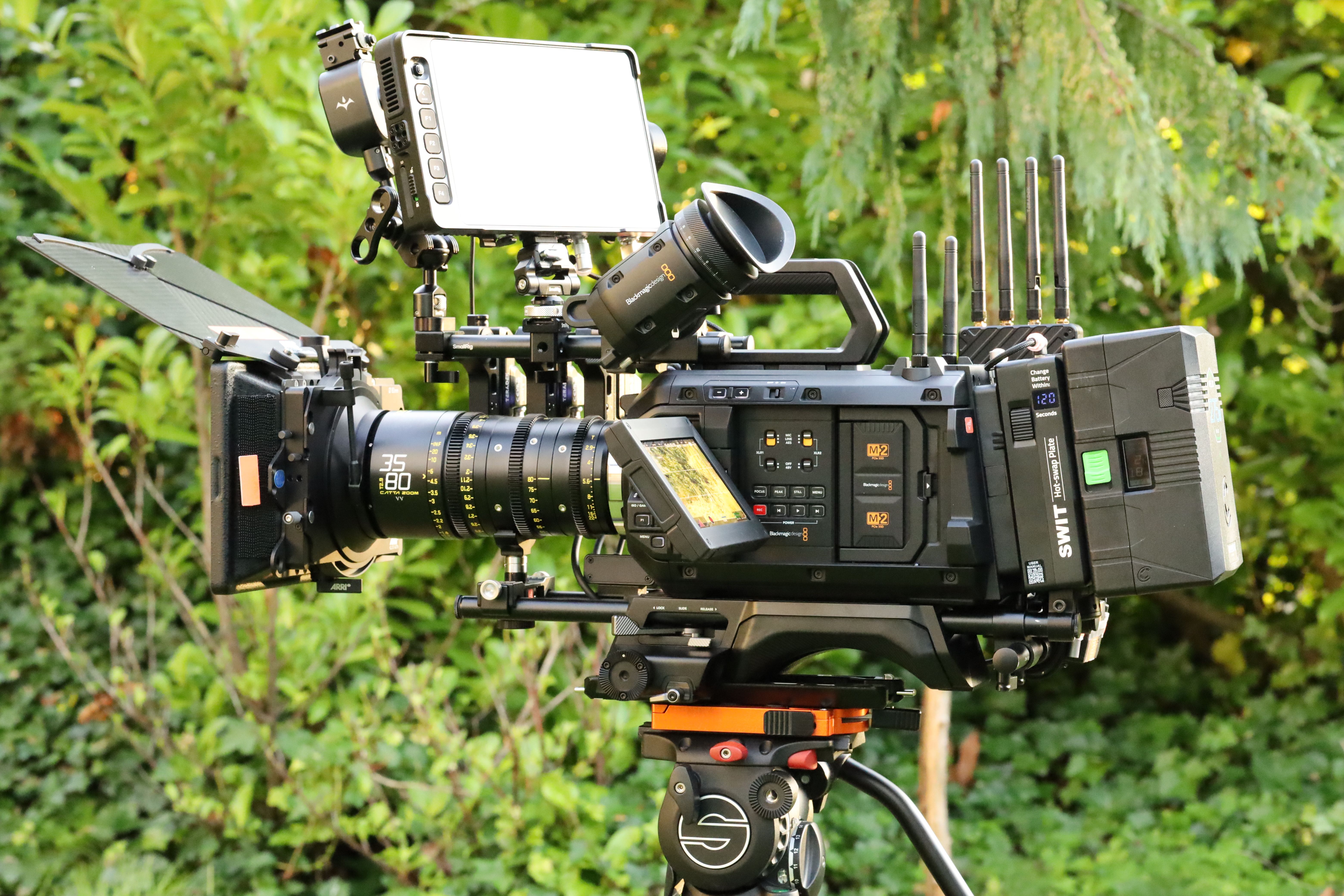

Ursa Cine (A-CAM)
Ursa Cine (A-CAM)

Blackmagic Design Ursa Cine 12K, 8TB module, shoulder mount + rods, B-mount hotswap, B-mount battery (6x 275Wh), SmallHD Ultra 7 monitor, EVF, Teradek transmitter (12G-SDI/4K image), Teradek RT FIZ with FocusBug, ARRI LMB 4x5.65 matte box, Cleans Camera MiniQRB plate

AA-CAM

A second, identical Ursa Cine 12K in case the first one falls over. Already kitted with 8TB module, shoulder mount + rods, B-mount hotswap plate, Teradek Bolt 4K 3G-SDI transmitter, Cleans Camera MiniQRB plate

B-CAM

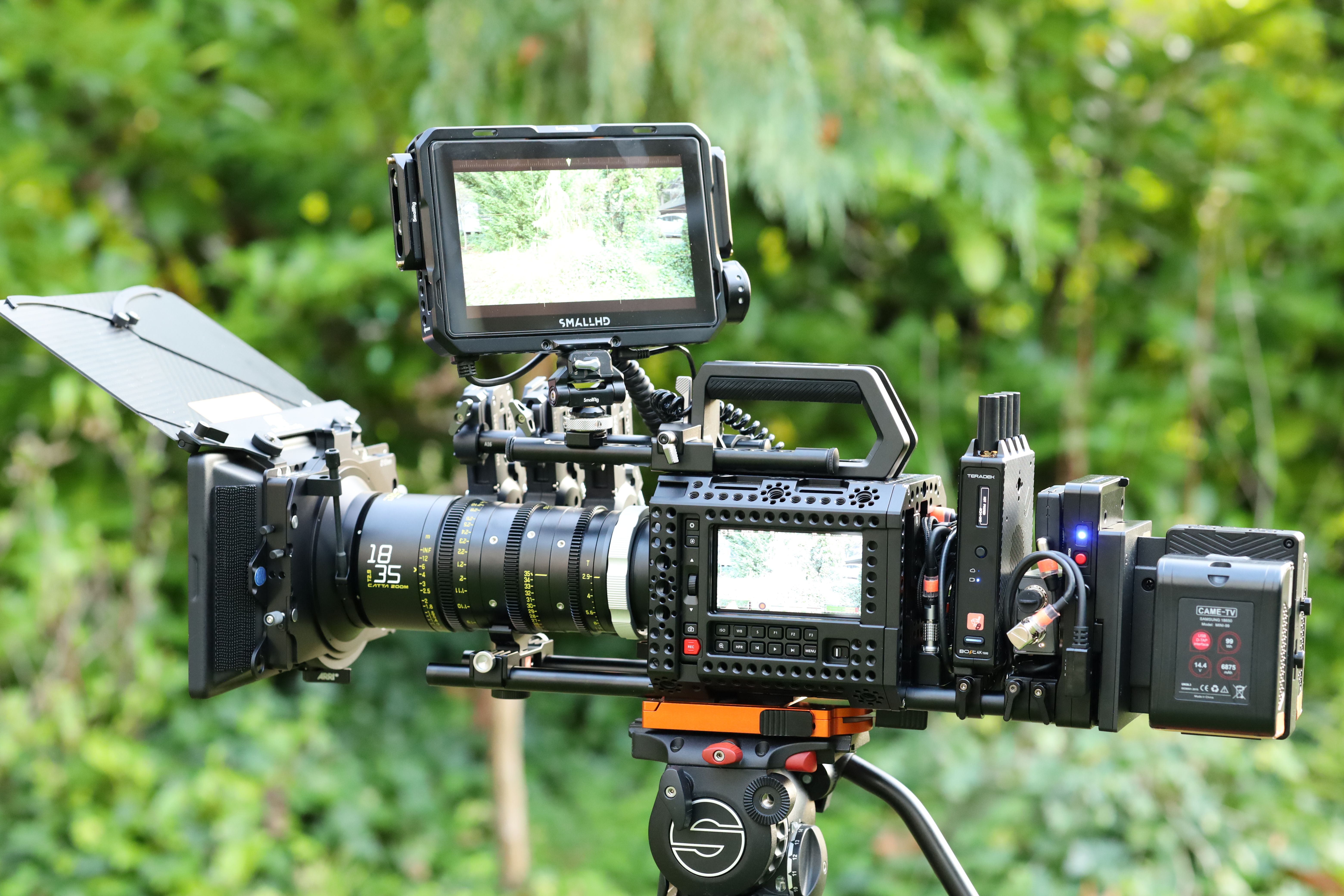

Pyxis 6K (B-CAM)

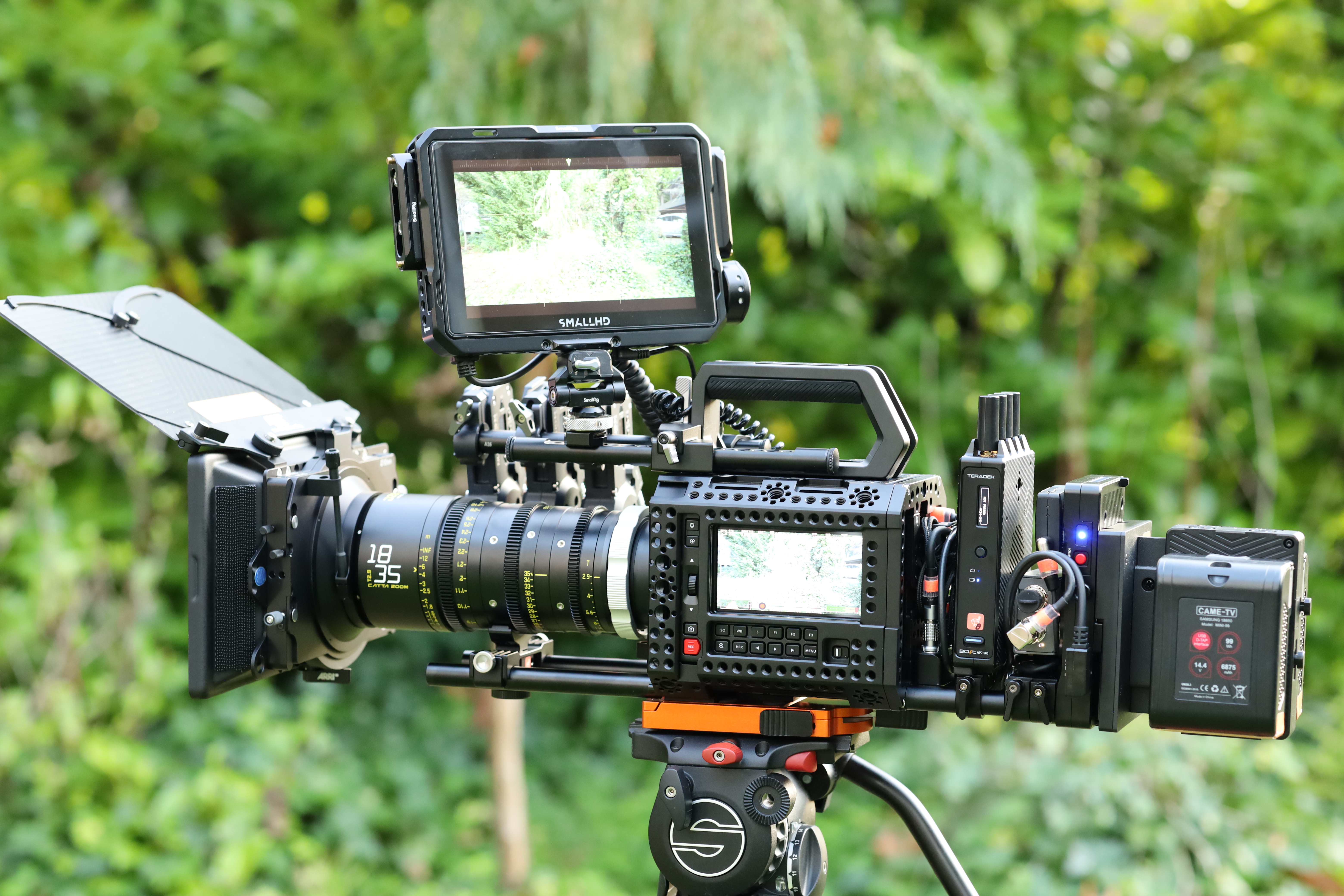

Pyxis 6K (B-CAM)

Blackmagic Design Pyxis 6K, XLCS Designs cage, V-mount battery (8x 98Wh) with Shark Fin, SmallHD 702 Touch monitor, Teradek transmitter (12G-SDI/4K image), Teradek RT FIZ and TOF-1, ARRI LMB 4x5.65 matte box, Cleans Camera MiniQRB plate.

Nucleus-M FIZ system (three motors) also included in the coffin, just in case.

C-CAM

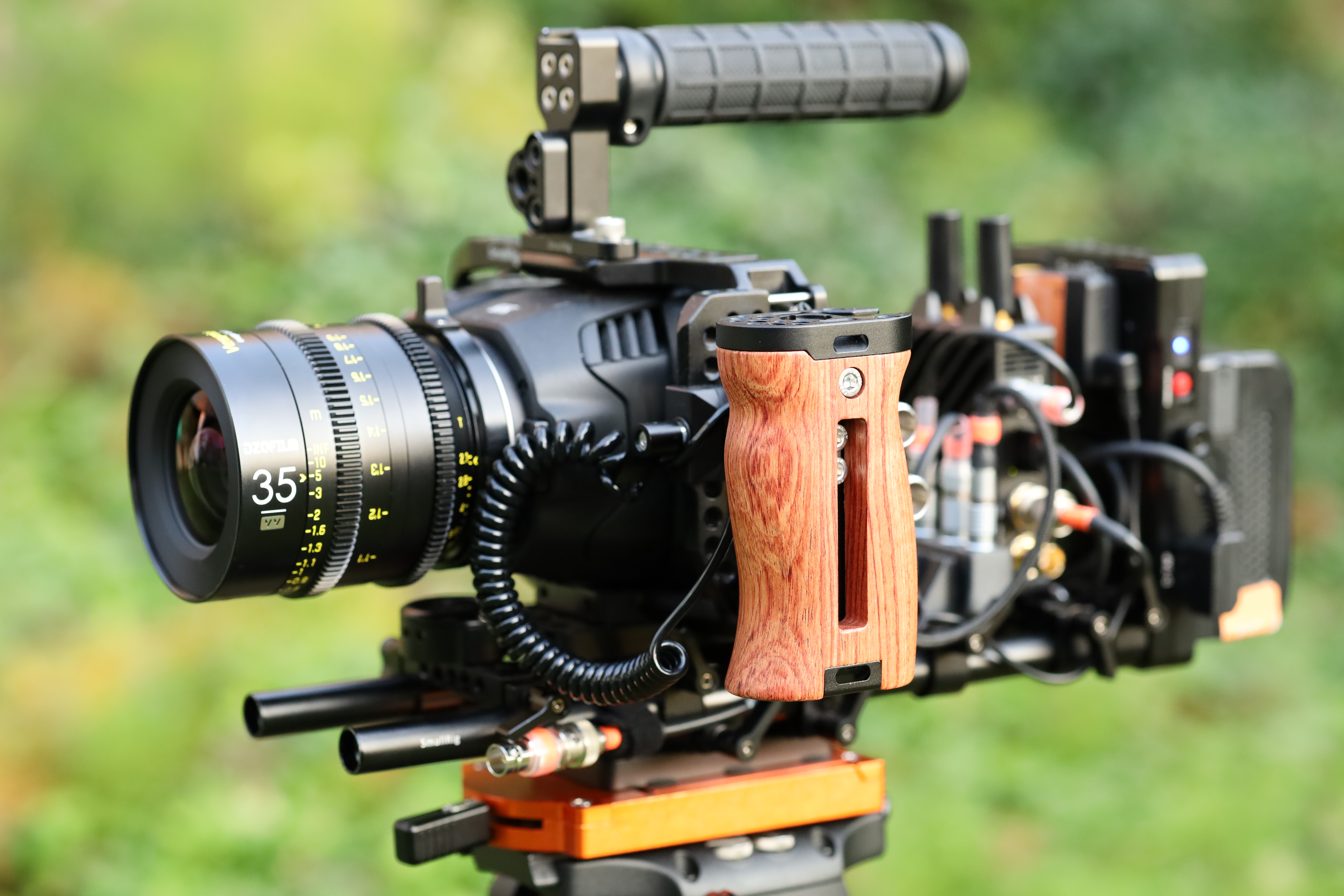

BMPCC 6K (C-CAM)
BMPCC 6K (C-CAM)

BMPCC 6K converted to PL mount, rigged with V-mount battery, Teradek transmitter (3G-SDI/HD image), Lemo 0B.2-based power distro, Cleans Camera MiniQRB plate, dinky SmallRig matte box

D-CAM

BMPCC 4K with Wooden Camera EF mount adapter. Available with V-mount battery and Teradek transmitter (3G-SDI/HD image) or de-rigged for small quarters shooting.

Other

Media

Protection

Lenses (EF mount)

Filters

4x5.65

77mm

FIZ and movement

Monitoring

Camera support

Timecode

Batteries

B-mount

V-mount

Steadicam

Lighting

COB and attached modifiers

Non-COB lights and attached modifiers

Theatrical

Stand-alone modifiers

Reflectors

Control

See DMX case for details.

Network

Atmospherics

Cable

Stands and other grip equipment

Lightweight light stands

C-stands

Junior stands

Extenders

Frame kits

Pipe

Pipe clamps

Adapters

Clamps

Magic Arms

Smallest

Small

Medium

Cardellinis

Suction cups / car mount with 1” starter pipe

Other

Boxes

Weights

Sound

Recording

Lavalier mics and transmitters

Non-lavalier mics

Mic support

Location support

Carts

Comms

Power

Cover

Rigging

(Obviously not on the truck because it wouldn't even fit)

XSF 12x12 Aluminum Box Truss

Allowable loads

XSF load table for 12”x12” Protective Bolt Plate Utility Truss:

Span (ft)UDL (lb/ft)CPL (lb)3PL (lb each)4PL (lb each)
107594,6103,4552,300
202252,2501,6901,125
30961,4501,085725
40441,030625450
5019590340250

UDL is uniformly distributed along the span; CPL is a single load at the center. 3PL is the load at each of two third points (⅓ and ⅔ of the span); 4PL is the load at each of three quarter points (¼, ½, and ¾ of the span).

Per XSF’s load table guide, truss self-weight is already accounted for. Point loads must be applied at panel points. Dynamic, shock, wind, seismic, snow, and ice loads are excluded.

Beam clamps

Slings

Rated capacity per sling (both lengths): 5,300 lb vertical, 4,200 lb choker, 10,600 lb basket (Lift-All specifications).

Lift-All specifies a minimum connection hardware diameter of ⅝” (0.625”) for both lengths. For round hardware, this corresponds to a minimum bearing surface radius of 5/16” (0.3125”), calculated as half the diameter.

Shackles

Working load limits (WLL) per shackle for in-line loading (CM specifications):

Chain stock

Working load limits for straight pulls (CM specifications, Peerless specifications):

Grumpycorp Studios
Seattle, Washington
